Sales promotion FTTH LSZH Indoor cable manufacturer from China Wuhan Seifree Technology Co., Ltd.

Payment Terms:	T/T
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: Carton

Production Capacity: 1000

Delivery Date: 2 week

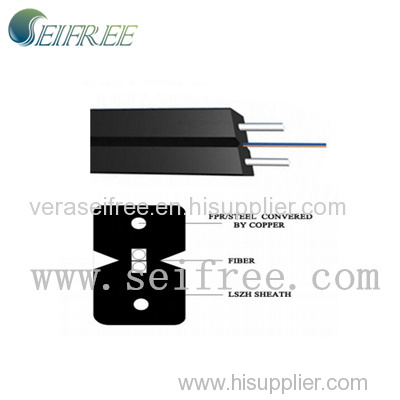

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

·Description
  The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
·Characteristics
   · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
          transmission property;
        · Two parallel FRP strength members ensure good performance of crush resistance to protect the
          fiber;
        · Simple structure, light weight and high practicability;
        · Novel flute design, easily strip and splice, simplify the installation and maintenance;
        · Low smoke, zero halogen and flame retardant sheath.
·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

·Technical Parameters

ber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)×(3.4±0.2)	8.5	30/60	300/1000	15/30
1	(2.0±0.2)×(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)×(4.0±0.2)	10	30/60	300/1000	15/30
